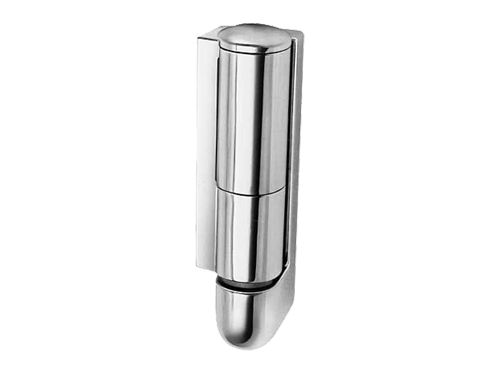

0215 CAM RISE HINGE

  • Built-in dwell holds door open at 93°.
  • Positive adjustment with 3/16" (4.8 mm) range.
  • Lift-off strap.
  • Cam repositions for use on right or left-opening door.

US Trademark: 2,349,251

Specifications

MATERIAL

High pressure, die-cast zinc flange, strap and adjustment plate; brass cover; self-lubricating nylon reversible cam; Oilite bearing; stainless steel pin.

FINISH

Polished chrome.

ADJUSTMENT RANGE

3/16" (4.8 mm).

MOUNTING

Drilled and countersunk for No. 10 (5.0 mm) screws.

LOAD RATING

See Hinge Selector Chart, Group A.

PACKAGING

32 each

WEIGHT

Approx. 25.6 lb. (11.6 kg) per carton
