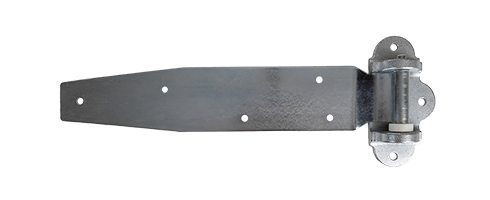

1074 STEEL STRAP HINGE

  • Heavy duty and durable
  • Smooth action for coolers, freezers and cold storage doors
  • Right hand hinge is standard. Easily reversible for left hand
  • Non-rising
Specifications

MATERIAL

Cast iron flange, steel strap, nylon bearing, steel pin.

FINISH

Kasonized. (Zinc plated)

OFFSETS

See Catalog

MOUNTING

Strap drilled for 1/4" (6.0mm) screws; flange drilled for 5/16" (8.0mm) lag screws (Not included).

LOAD RATING

See Hinge Selector Chart, Group E.

STRAP LENGTH

13-5/8" (346.1mm).

PACKAGING

12 each

WEIGHT

Approx. 37 lb.
(16.8kg) per carton
