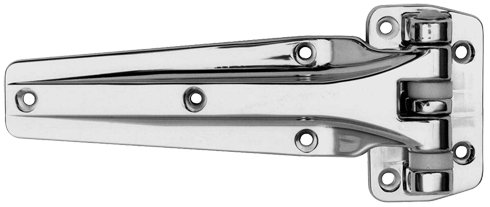

1241 HEAVY DUTY DOUBLE KNUCKLE HINGE

  • Engineered to take great stress and resist sag
  • Exclusive ribbed underside construction reduces weight while adding strength
  • Non-rising
  • Order as left-hand or right-hand

U.S. Trademark: 2,277,203

Specifications

STRAP LENGTH

9" (228.6mm).

MATERIAL

High pressure die-cast zinc with stainless steel pin and nylon bearings.

OFFSETS

See Catalog.

MOUNTING

Holes drilled and countersunk for 1/4" (6.0mm) screws. Strap available with three different mounting hole locations; refer to dimensions A and B on drawings.

LOAD RATING

See Hinge Selector, Group D.

FINISH

Polished chrome.
