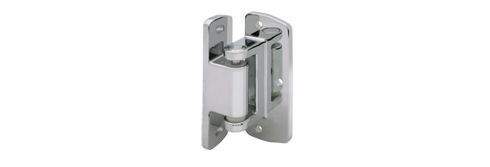

1398 HEAVY DUTY EDGEMOUNT CAM RISE HINGE

  • Edge mount for full overlap doors
  • Slotted holes allow gasket adjustment
  • Built-in cam gently raises the opening door to reduce friction and gasket wear. Holds open door beyond 150°
  • Furnished right hand; can be reversed
Specifications

MATERIAL

High pressure die-cast zinc; nylon cam and follower.

FINISH / OFFSET

See Catalog.

MOUNTING HOLES

Drilled for 3/8" (9.5mm) screws (not included).

LOAD RATING

See Hinge Selector, Group G.

PACKAGING

8 each

WEIGHT

Approx. 28 lb. (12.7kg) per carton
