0199 TWO POINT LATCH

199 Two Point Latch

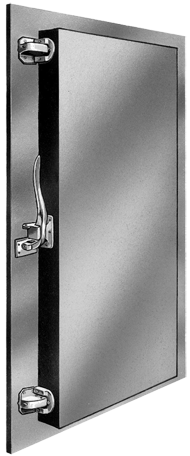

  • Complete latch consists of two bodies, two horseshoe strikes, one outside release handle with strike and one inside release handle with strike.
  • Powerful edgemount latch for overlapping doors with offset of 4-1/2" (114.3mm) or higher.
  • Spring tension at both seals holds door tightly shut.
  • Opens and closes easily from outside or inside with lever handles.
  •  Slotted strike for easy offset adjustment.
  • Holding force per pair or latches: approx. 120 lb. (534 N). Lever handle release force: approx. 30 lb. (133 N).
Specifications

MATERIAL

Aluminum

FINISH

Kasonized (Zinc plated)

MOUNTING

Latch drilled and countersunk for 1/4" (6.0mm) screws. Strike slotted for5/16" (8.0mm) lag screws.

PACKAGING

1 per carton

WEIGHT

Approx. 23 lb. (10.4kg) per carton
