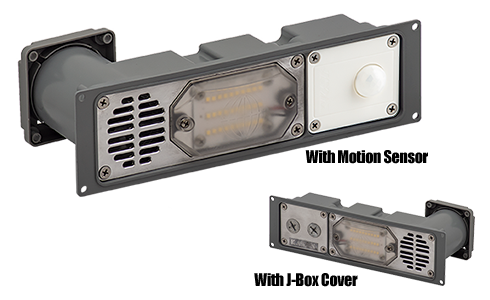

1826 INTELLI-VENT® MULTI-FUNCTIONAL PRESSURE RELIEF PORT

1826 Intelli-Vent with LED Security Light
  • 24/7 Safety Illumination
  • Hands-free operation
    • Add-on motion sensor controls ceiling mounted lights
    • Eliminates the touch point of a wall-mounted switch
  • Reduces labor by installing a single product
    • No vent heater or light switch electrical runs
  • Reduced SKU inventory
    • Separate light switch and motion sensor not required
  • 60% faster pressure relief
  • Energy saving design
    • LED heats the pressure relief port to avoid frost build-up and condensation
  • Compact functionality and improved aesthetics

NOTES:

  • Walk-In operation temp range: -20°F(-28.9°C) to 40°F(4.4°C)
  • Normal capacity: 1 per cf in freezer, 1 per cf in coolers. Use quantity calculator for application details.

U.S. Patents: 10,731,912
10,739,055
10,845,115,B2

US Trademark: 4,269,018

Specifications

MATERIAL

Housing: Polycarbonate

Heat sink: Die-cast Aluminum

ACC Cover: Die-cast Aluminum

Lens: Polycarbonate

Hardware: Stainless steel

INPUT POWER

11W, 120-277 VAC, 0.09A, 50/60 Hz

LED

Output: 1000 lumens

Color temperature: 4000k

MOUNTING

Horizontal or vertical installation in walls only
