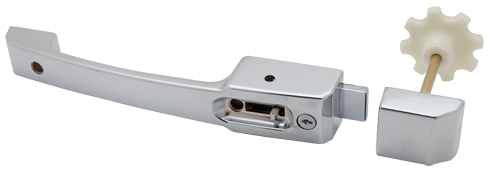

0027C SAFEGUARD® DEADBOLT LOCKING HANDLE

  • Deadbolt security for walk-ins at the economy of a locking pull handle
  • Deadbolt is secured using cylinder lock or padlock, or both
  • Deadbolt can be locked in open position
  • Self-adjusts to wall thickness variations
  • Standard, twist-off glow in the dark inside release knob prevents lock-ins
  • Two 1/4 turn inside release options meet ADA requirements for fast exit
    • 1/4 turn Inside Release, shown above with handle
    • 27c 1/4 Turn Low Conduction Inside Release, shown to the right
  • Locking mechanism located outside resists freeze-up

Flush offset and 4” thick wall standard. Other wall thicknesses available. Consult factory. 1-5/8” offset option listed in model number table; Available down to 1/2”

U.S. Trademark: 5,760,309
1/4 Turn Inside Release Patent No.: 9,068,376

Specifications

LATCH

MATERIAL:

Die-cast Zamak handle housing, tongue and strike.

FINISHES:

Polished chrome and brushed chrome.

PACKAGING

6 per carton

LATCH

LOCKING MECHANISMS:

Cylinder lock (may be keyed alike or randomly). Accepts 5/16" (7.9mm) dia. shank padlock (customer supplied).

MOUNTING:

Drilled and countersunk for 1/4" (6.4mm) fillister head screws.

STRIKE

MATERIAL:

Die-cast Zamak housing, brass rod, glow-in-the-dark polycarbonate turn-knob.

FINISHES:

Housing same as latch.
