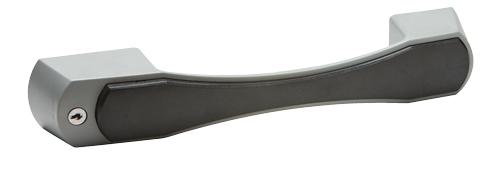

1228C SAFEGUARD® PERFORMER™
WITH LOCKING HANDLE
WITH LOCKING HANDLE
- Operates seamlessly with sag-proof 1345 or 1346 Performer™ hinges
- Easy installation - Handle mounts to door with two fasteners. Deadbolt locking strike mounts to jamb with inside release
- Includes high strength, low maintenance inside safety release system
LOCKING HANDLE FEATURES
- Molded, reinforced composite handle has tubular steel reinforcement for high strength
- Versatile - Surface mounts to work with any door construction. Grip cover conceals mounting hardware and acts as protective bumper
STRIKE FEATURES
- Steel reinforced strike pocket protects the door face and increases security
- Meets NSF/ANSI Standard 2 for food equipment components
- Designed to keep dirt and debris from entering the internal locking mechanism
- Compact twist-action deadbolt key-locks
- Handle padlocks in key-locked or unlocked position
- Twist-off glow in the dark knob inside release is standard
- Kason has added a tether cable to hold the strike to the door jamb after inside handle is released
U.S. Trademarks: 4,650,622 & 5,272,931
U.S. Patent No. for ISR Glow Plate: D959,218
Specifications
MATERIAL
Heavy duty steel tubular assembly with ABS composite covering provide optimum strength and durability. Locking strike features durable aluminum housing. Locking knob and tongue have durable ABS cover. The Inside release has poly-carbonate twist handle.
OFFSET
Flush
FINISH
Molded dark grey with black accents standard. Custom shapes and colors available, based on volume commitment.
MOUNTING
Drilled for 5/16" (8mm) screws.
DOOR THICKNESS
Standard for 4" door. Other sizes available.
LOCKING MECHANISM
Cylinders may be keyed alike or randomly. Accepts 5/16" (8mm) dia. shank padlock (customer supplied).
