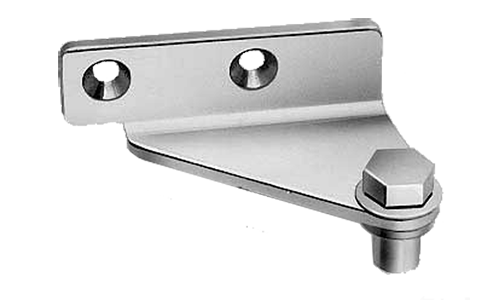

1531 HORIZONTAL FACE-MOUNTED PIVOT HINGE
- For use on reach-in and pass-through cabinet doors for almost any hinged door application
- Fully interchangeable. Use in combination with each other or with any other Kason horizontal face-mounted hinges
- Mounts upper right or lower left
Specifications
MATERIAL
Heavy gauge steel; Oilite bearing.
FINISH
Heavy duty chrome plate.
MOUNTING
Drilled and countersunk for No. 10 (5.0 mm) screws.
PACKAGING
100 per carton
LOAD RATING
See Hinges Selector Chart, Group B
WEIGHT
Approx. 17 lb. (7.7 kg) per carton
1530 Companion Hinge
