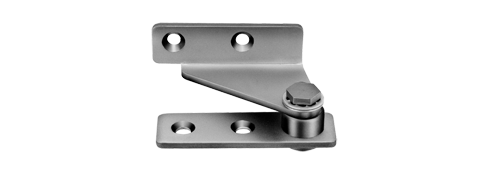

1533 HORIZONTAL FACE-MOUNTED PIVOT HINGE
- Use on reach-in and pass-through doors for almost any application
- Fully interchangeable. Use in combination with each other or with any other Kason horizontal face-mounted pivot hinges
- Mounts upper right or lower left
Specifications
MATERIAL
Heavy gauge steel.
FINISH
Heavy duty chrome plate.
MOUNTING
Drilled and countersunk for No. 10 (5.0 mm) screws.
PACKAGING
50 per carton
LOAD RATING
See Hinge Selector Chart, Group B.
WEIGHT
Approx. 18 lb. (8.2 kg) per carton
1532 Companion Hinge
