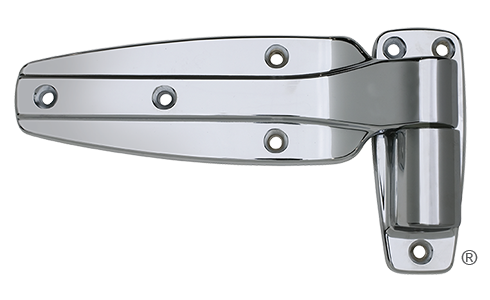

1245 REVERSIBLE CAM-RISE HINGE

  • Industry standard self-closing cam-rise hinges.
  • Door opens with minimum effort.
  • Strong self-lubricating nylon cam delivers smooth, trouble-free door operation
  • Cam-rise action reduces gasket wear, even with irregular floors
  • Holds door open beyond approximately 130°
  • Doors lift off without disassembly or removing hinges
  • Simple manual operation reverses hinges for use on right- or left-opening door

U.S. Trademark: 2,176,043

Specifications

MATERIAL

High pressure die-cast zinc with self-lubricating nylon cam.

FINISH

See Catalog. Powder coated finishes available for severe environmental applications.

OFFSETS

See Catalog.

MOUNTING

Drilled and countersunk for 1/4" (6.0mm) flat head screws.

LOAD RATING

See Hinge Selector, Group D.

PACKAGING

6 each per carton

WEIGHT

Approx. 18 lb. (8.2kg) per carton
