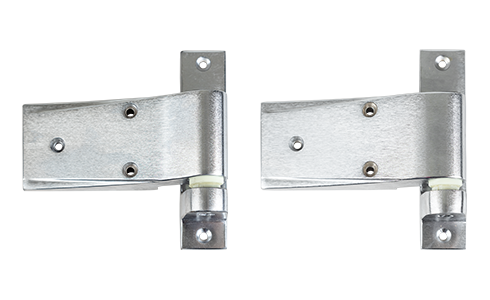

1253 OBLIQUE CAM-RISE HINGE
- Designed to quickly lift sweeper gasket on opening to increase gasket life
- Smooth operation increases closing force without internal spring
- Spring kit option available to increase closing momentum
- Reversible for Left/Right hand door openings
- Built in dwell holds door open after 120° rotation
- Door lifts off without disassembly or removal of hinges
- Upper and lower hinge sold separately
- Finishes: chrome, brushed chrome or powder coated
Specifications
MATERIALS
Flange, Strap: Zinc zamak #3, chrome plated
Cam, Follower: Nylon, 6/6 compound
End Cap: Polyethylene
Hex Rod: Steel, Zinc plated
O-Ring: Rubber compound
TEMPERATURE RATING
-20°F to 150°F (-28.9°C to 65.5°C)
