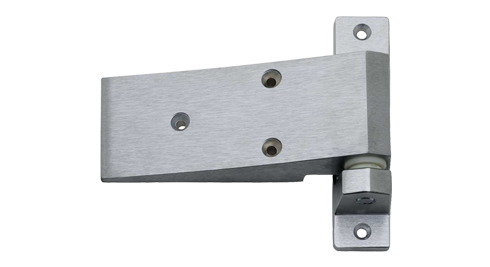

1256 PACESETTER HINGE
- Bold, contemporary style
- Complements Kason Pacesetter locking handles
- Economy and durability are built in
- Strong, self-lubricating nylon cam delivers smooth, trouble-free door operation. Closes door with minimum effort
- Cam-rise action reduces gasket wear, even with irregular floors
- Built-in dwell holds door open beyond approximately 120°.
- Hinges reverse in minutes without tools for use on right or left opening door
1255-2 SPRING CARTRIDGE KIT
- Converts No. 1255 or 1256 to spring assist for greater closing force.
U.S. Trademarks: 2,177,708 & 2,136,434
Specifications
MATERIAL
High pressure die-cast zinc with self-lubricating nylon cam.
FINISH
See Catalog.
OFFSET
Flush (0.0mm).
MOUNTING
Drilled and countersunk for 1/4" (6.0mm) flat head screws.
LOAD RATING
See Hinge Selector, Group D.
PACKAGING
6 each
WEIGHT
Approx. 18 lb. (8.2kg) per carton
