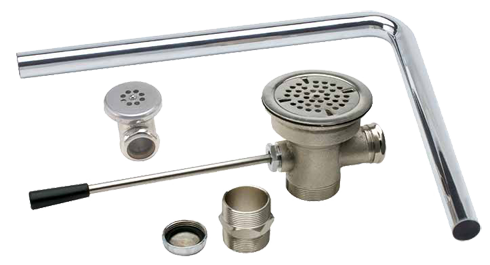

CONVERTIBLE LEVER WASTE WITH OVERFLOW ASSEMBLY
- Fast drainage
- Positive seal
- Snap-in strainer
- Available as complete unit or separate parts
- One year limited warranty
0458-4400 LEVER WASTE WITH OVERFLOW OUTLET
- Lever-operated waste outlet with overflow outlet
0458-4500 LEVER WASTE WITH OVERFLOW OUTLET, HEAD & ELBOW
- Complete lever-handle operated unit
0458-7010 OVERFLOW HEAD
- May be ordered separately; see additional information
0458-7020 OVERFLOW ELBOW
- May be ordered separately; see additional information
Specifications
MATERIAL
OUTLET - Bright nickel plated low lead brass alloy body, stainless steel face flange, strainer and handle; Neoprene head gasket.
OVERFLOW HEAD - Bright nickel plated low lead brass alloy head, stainless steel strainer.
MATERIAL
ELBOW - Bright nickel plated low lead brass alloy tubing.
ELBOW SIZE
14" x 18" (356 x 457mm)
CONNECTIONS
2"-11.5 NPT male (external) and 1-1/2"-11.5 female (internal), furnished with 1-1/2"-11.5 male coupling; 1-1/4"-11.5 NPS overflow outlet, head and elbow.
