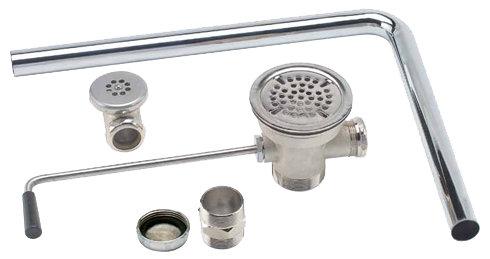

CONVERTIBLE TWIST WASTE WITH OVERFLOW
ASSEMBLY
- Fast drainage
- Positive seal
- Snap-in strainer
- One year limited warranty
0458-6400 TWIST WASTE WITH OVERFLOW OUTLET
- Twist-handle operated outlet and overflow outlet only
0458-6500 TWIST WASTE WITH OVERFLOW OUTLET, HEAD & ELBOW
- Complete twist-handle operated unit
0458-7010 OVERFLOW HEAD
- May be ordered separately; see specifications
0458-7020 OVERFLOW ELBOW
- May be ordered separately; see ordering information
Specifications
MATERIAL
OUTLET - Bright nickel plated cast bronze body, stainless steel face flange, strainer and handle; Neoprene head gasket.
OVERFLOW HEAD- Bright nickel plated cast bronze head, stainless steel strainer.
ELBOW - Bright nickel plated copper alloy tubing.
ELBOW SIZE
14" x 18" (356 x 457mm)
CONNECTIONS
2"-11.5 NPT male (external) and 1-1/2"-11.5 female (internal), furnished with 1-1/2"-11.5 male coupling; 1-1/4"-11.5 NPS overflow outlet, head and elbow.
