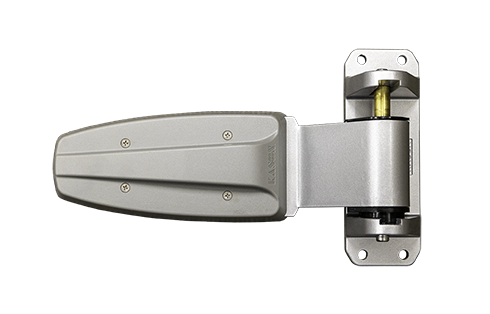

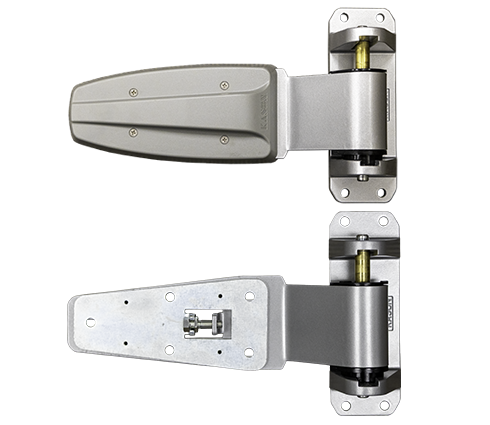

1378 HEAVY-DUTY HIGH-RISE ADJUSTABLE HINGE

• Strap adjustment up to 1/2” per hinge, allowing sagging doors to be realigned for renewed service
• Industry standard self-closing cam-rise hinge
• Heavy-duty face mount hinge
• High rising spiral cams, total rise is 7/8” (22.2 mm)
• Cam design raises door quickly upon opening to reduce sweeper gasket drag and wear, plus increase closing momentum
• Holds open dwell at 105°F (40.6°C)
• Through-pin flange design
• Optional: Spring loaded cam for extra closing force
• Note: Replaces the 1278 and 1277

U.S. Patent No. 7,870,642; 7,584,523; 8,621,715; 8,505,166; 8,407,859
