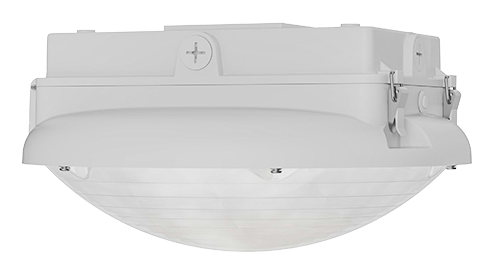

1820U/UB LED HIGH BAY FIXTURE
- Next generation of LED Hi/Low Bay lighting designed for walk-in and large refrigerated warehouses
- Battery back-up (1820UB model only)
- Large, hinged junction box with lever connectors
- Flexible junction box can be mounted with a hook, rigid conduit, and direct mount
- Selectable wattage/lumen output
- Selectable LED light color
- 0-10 dimmable feature
- Built-in pressure vent to prevent moisture from collecting in the fixture housing
Specifications
MATERIALS
Light weight, durable aluminum cast body, white powder coating
High impact poly-carbonate lens
DESIGN CRITERIA (1820U)
Input: 80 VAC - 277 VAC
Frequency: 50/60Hz
Selectable Wattage/Lumen Output
- 40 Watts/5900 Lumens
- 60 Watts/9300 Lumens
- 70 Watts/10,600 Lumens
Selectable Light Color Temperature
- Warm Light: 3000K
- Natural Light: 4000K
- Cool Light: 5000K
DESIGN CRITERIA (1820UB)
Input: 80 VAC – 277 VAC
Frequency: 50/60Hz
Selectable Wattage/Lumen Output
- 21 Watts/3150 Lumens
- 30 Watts/4500 Lumens
- 40 Watts/6000 Lumens
Selectable Light Color Temperature
- Warm Light: 3000K
- Natural Light: 4000K
- Cool Light: 5000K
