0058E SAFEGUARD SECURITY LATCH
WITH ELECTRONIC FLUSH STRIKE

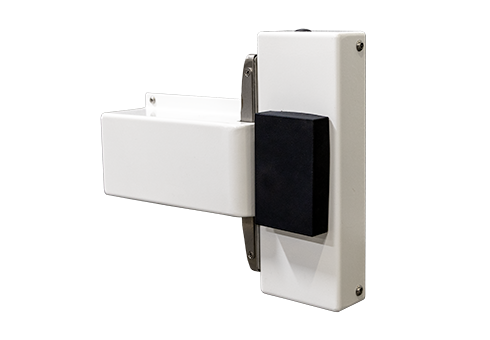

58E Latch with Electric Flush Strike
  • Kason SafeGuard® latch with inside release (sold separately) assures easy exit at all times
  • Stainless steel and powder coated steel construction with stainless steel hardware provide durability and low maintenance
  • Utilizes high-security industry standard UL Certified electronic strike
  • Overlapping cover design provides increased tamper resistance
  • Accepts card readers intended for standard junction box mounting
  • Electric strike can be set to either Fail Safe or Fail Secure
  • Use with Kason models 0481C, 0482C, 0486C, 0487C, 0488C, and 0489C inside releases

WARNING

To ensure safe installation follow instructions enclosed within product shipping carton

Specifications

MATERIALS

Base Plate: Steel
Top Cover: Optional 300 series stainless steel or powder coated steel
Latch Cover: Optional 300 series stainless steel or powder coated steel
Latch Spacer: Gray ABS
Latch Insert: Gray ABS
Anti-Pick Plate: 300 series stainless steel
Hardware: Stainless steel
0058 Latch: Zinc die-cast and stainless steel
Electric Strike Assa Abloy 9600: Stainless steel
Card Reader HID: See table for model number

ELECTRICAL

Required Power for Card Reader:
65 mA @ 16 VDC, 5-16 VDC operating voltage
Electric Strike Power Required:
0.45/0.25 A @ 12/24 VDC at continuous duty

INGRESS/EGRESS

Users inside the enclosure always have a free exit. In the case of a power outage to the latch, the door will become unlocked from the outside if wired as Fail Safe, and alternatively will remain locked on the outside if wired as Fail Secure.

TEMPERATURE RATING

-31°F to 150°F (-35°C to 66°C)

MOUNTING HARDWARE

Designed for (6) 1/4” dia. hex head fasteners and (4) #10 dia. tamper-proof screws (not included).
